Modulit

Specialized Polycarbonate System

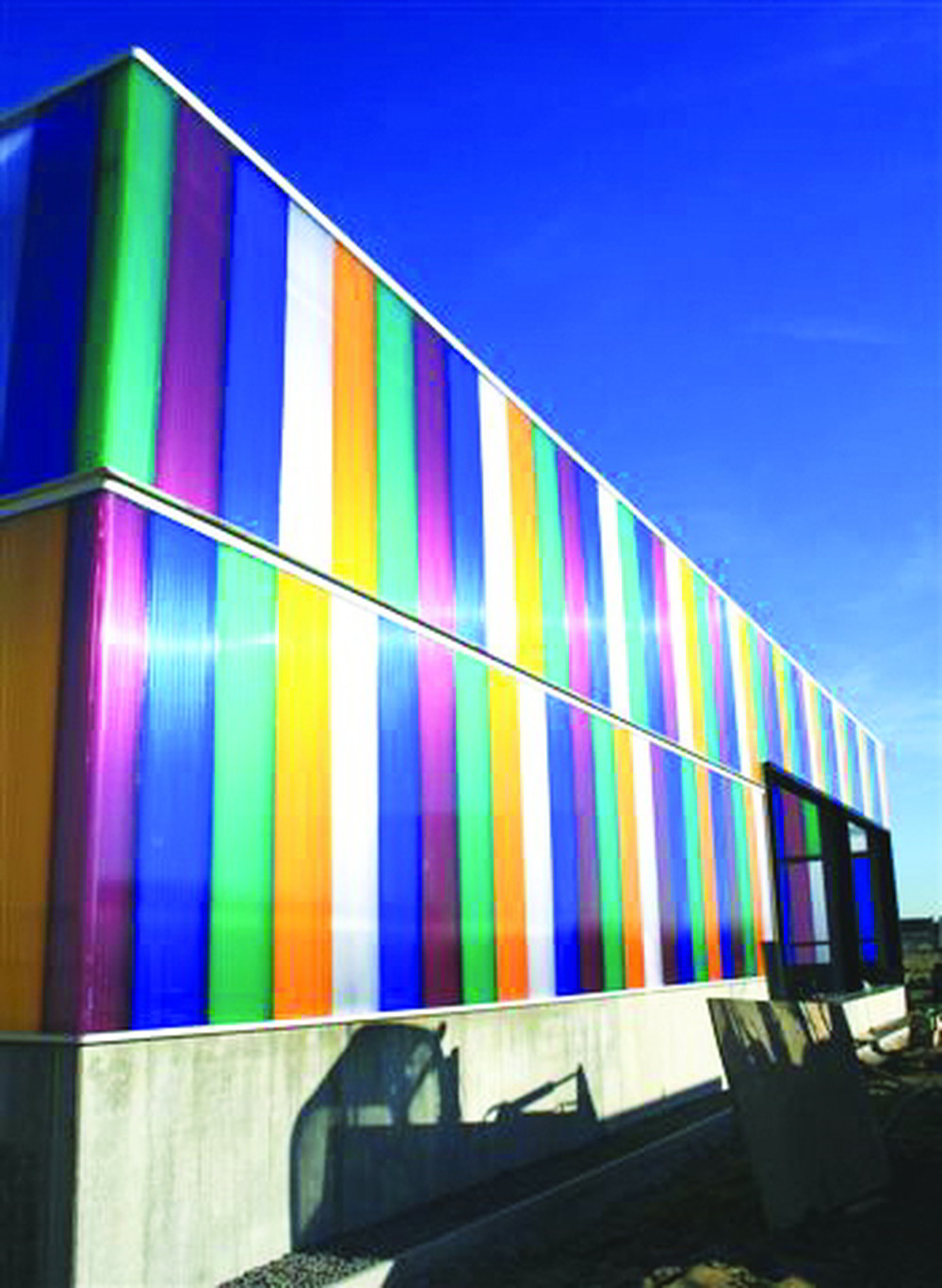

Modulit® is a polycarbonate system extruded in modular panels used for the production of translucent vertical and / or inclined walls. The system is made by means of panel coupling, provided by “male / female” joints for a perfect fit. Thereby the installation is fast and easy, even for the inexperienced in the use of modular systems. The range of accessories, consisting of outer profiles in aluminium, hooks and gaskets, making the system complete, versatile and secure.

Technical Data - Download

Benefits

Quick and easy to assemble
High temperature insulation
Excellent impact resistance
Good light transmission
Good fire performance
Certified quality guarantee
UV protection

Description Technical Data Accessories

UV PROTECTION

UV protection on one side

Sheets protected from the effects of UV rays on one side.This protection effectively allows the sheets to retain their original transparency and mechanical impact resistance properties for the duration of their service life.

UV protection on both sides

Sheets protected from the effects of UV rays on both sides. Particularly suitable for applications where they may be exposed to direct and/or indirect solar radiation on both sides. This treatment also eliminates installation errors, while cutting is optimized since XL the sheeting is protected whichever side faces up.

NO UV

NO UV protection

Sheets not protected from the effects of UV rays, which cause them to degrade rapidly. They are ideal for all applications where direct exposure to solar radiation is not an issue.

CUSTOMIZATION

PLUS

Extra UV protection

Sheets with increased, extra strong protection from UV rays. Ideal for use in applications marked by particularly harsh environmental conditions.

BICOLOR

Dual colouring

Sheets made with a special technique to produce one colour on the inside and a different colour on the outside. With their undeniable good looks, these sheets find application, above all, in architecture.

ANTIGLARE

ANTI-REFLECTIVE treatment

The special ANTIGLARE treatment, on the UV protected side, significantly reduces the glare effect due to the reflection of the light rays. It also creates a pleasant diffusion of light inside the building.

PANEL

Modulit® 520 HC Modulit® 338 LP Modulit® 500 LP Modulit® 511 LP 40 mm Modulit® 511 LP 50 mm Modulit® 511 LP 55 mm Modulit® 511 LP 60 mm

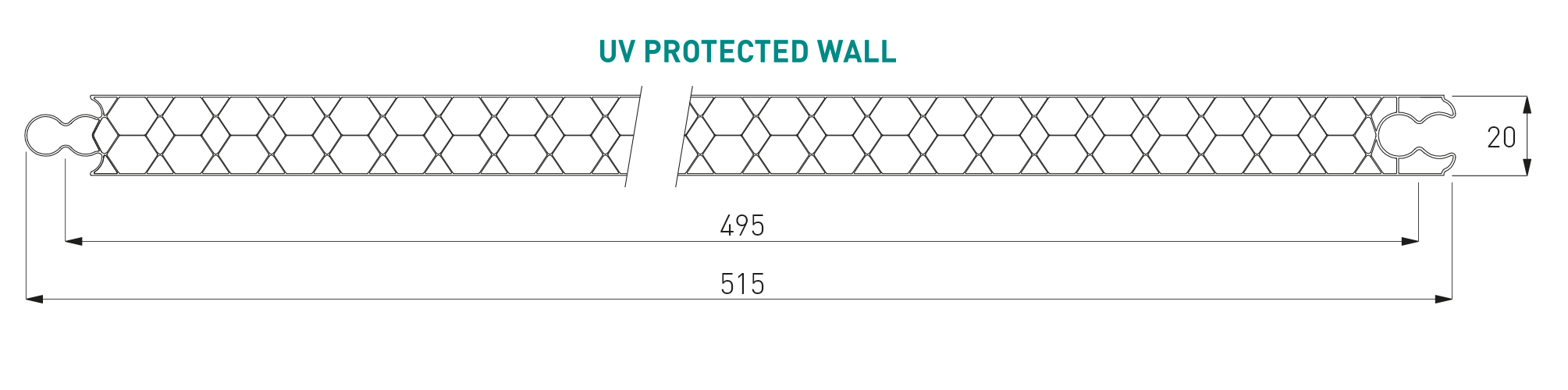

Modulit® 520 HC

Modulit® 520 HC is a polycarbonate system for the production of translucent vertical curtain walls to use in industrial and civil constructions. The system is made by multiwall extruded polycarbonate panels with honeycomb structure, thickness of 20 mm, module width 495 mm and UV protection obtained by co-extrusion on the external side. The system is made by means of panel coupling, provided by “male / female” joints for a perfect fit; perimeter profiles aluminium complete the fixing structure. Easy and economical installation, Modulit® 520 HC allows excellent light transmission, high load resistance and thermal insulation.

CUSTOMIZATION

PLUS

ANTIGLARE

UV PROTECTION

NO UV

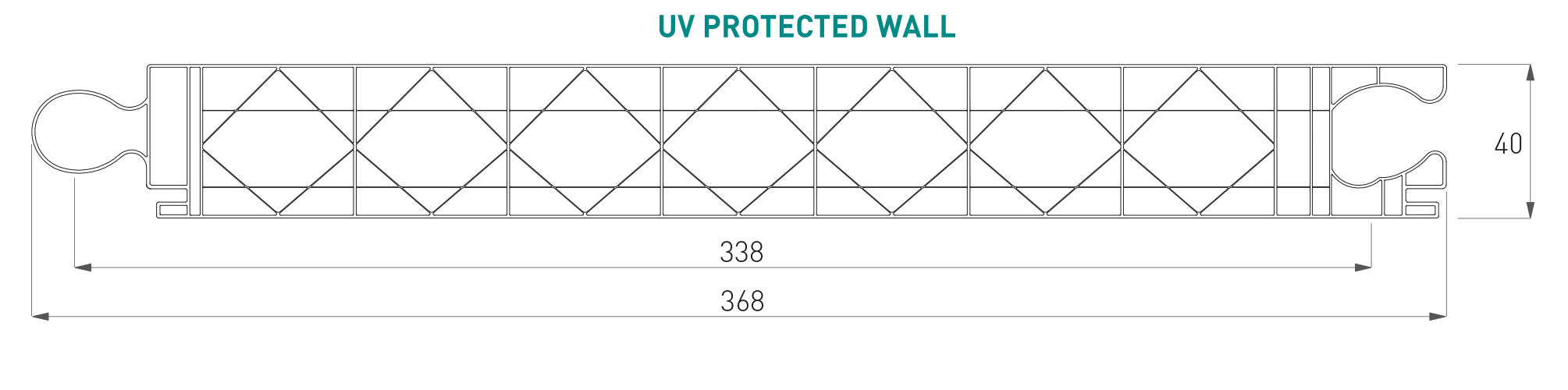

Modulit® 338 LP

Modulit® 338 LP system is a polycarbonate system for the production of translucent vertical curtain walls to use in industrial and civil constructions. The system is made by multiwall extruded polycarbonate panels with 6 wall structure, thickness of 40 mm, module width 338 mm and UV protection obtained by co-extrusion on the external side. The system is made by means of panel coupling, provided by “male / female” joints; perimeter profiles in aluminium, fixing hook and gasket complete the fixing structure. Easy and economical installation, Modulit® 338 LP allows excellent light transmission, high load resistance and thermal insulation.

CUSTOMIZATION

PLUS

BICOLOR

XLPLUS

UV PROTECTION

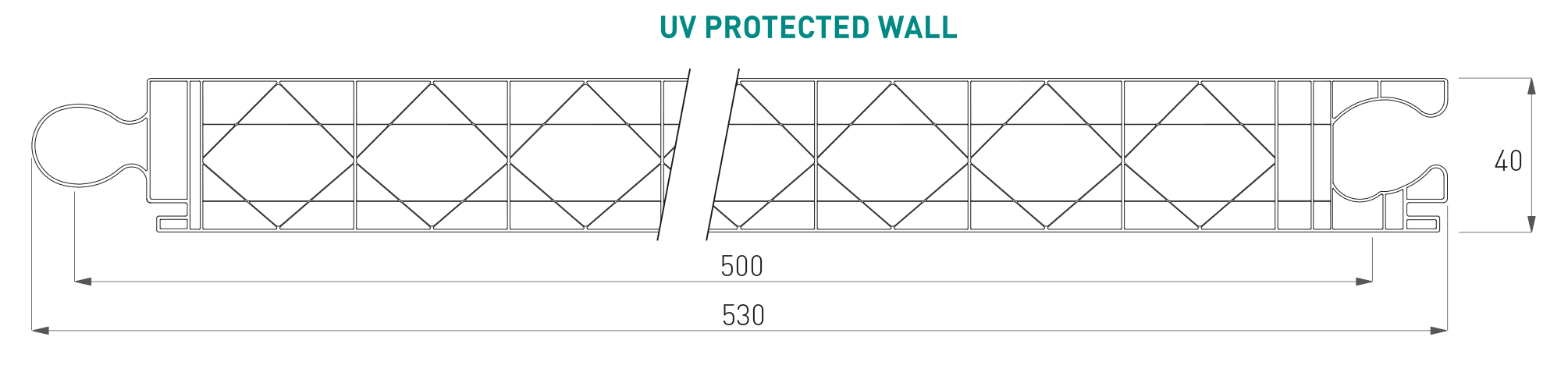

Modulit® 500 LP

Modulit® 500 LP system is a polycarbonate system for the production of translucent vertical curtain walls to use in industrial and civil constructions. The system is made by multiwall extruded polycarbonate panels with 6 wall structure, thickness of 40 mm, module width 500 mm and UV protection obtained by co-extrusion on the external side. The system is made by means of panel coupling, provided by “male / female” joints for a perfect fit; perimeter profiles in aluminium complete the fixing structure. Easy and economical installation, Modulit® 500 LP allows excellent light transmission, high load resistance and thermal insulation.

CUSTOMIZATION

PLUS

BICOLOR

XLPLUS

UV PROTECTION

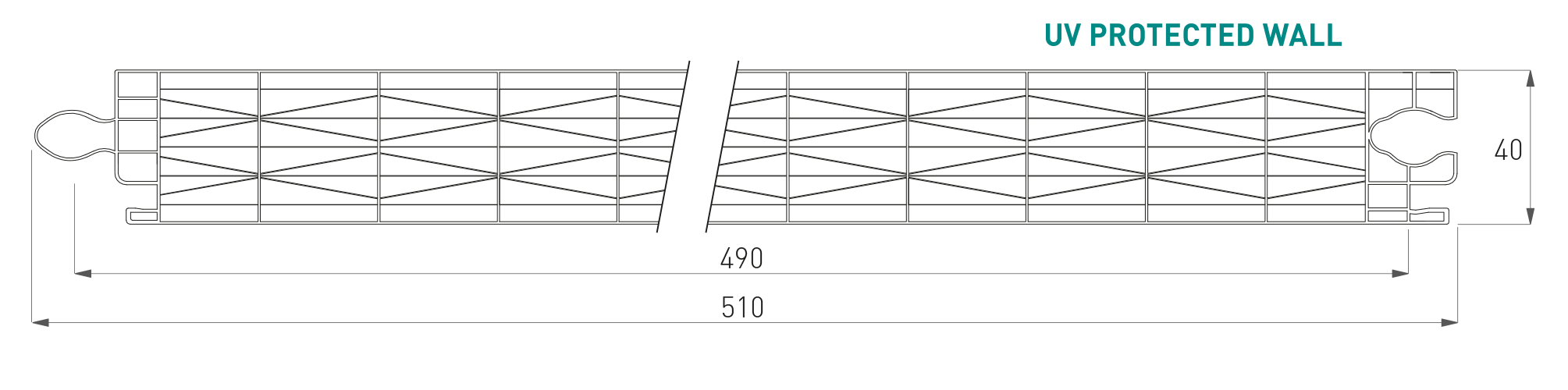

Modulit® 511 LP 40 mm

Modulit® 511 LP 40 mm system is a polycarbonate system for the production of translucent vertical curtain walls to use in industrial and civil constructions. The system is made by multiwall extruded polycarbonate panels with 11 walls double-X structure, thickness of 40 mm, module width 490 mm and UV protection obtained by co-extrusion on the external side. The system is made by means of panel coupling, provided by “male / female” joints for a perfect fit; perimeter profiles in aluminium complete the fixing structure. Easy and economical installation, Modulit® 511 LP 40 mm allows excellent light transmission, high load resistance and thermal insulation.

CUSTOMIZATION

PLUS

BICOLOR

XLPLUS

UV PROTECTION

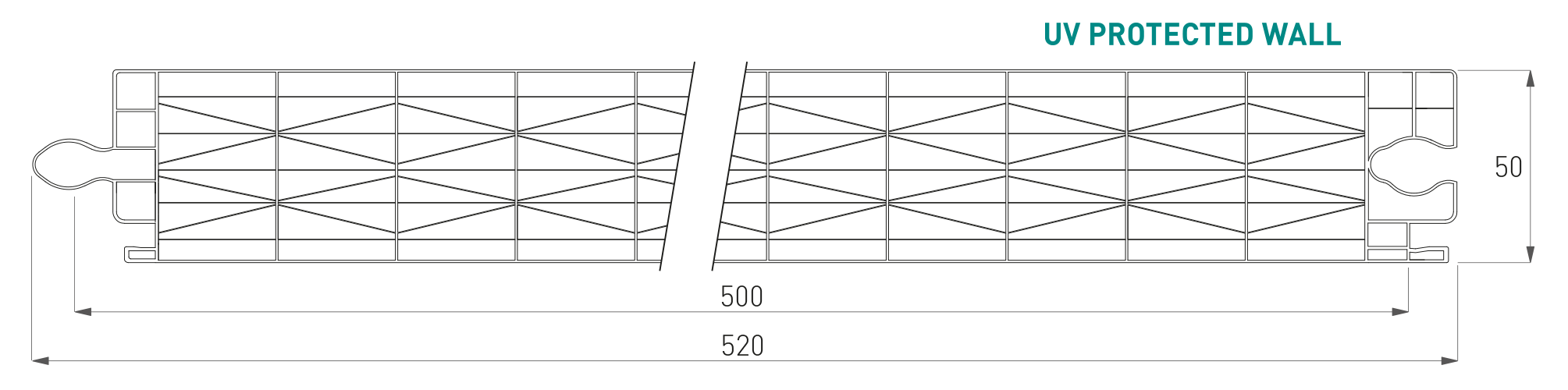

Modulit® 511 LP 50 mm

Modulit® 511 LP 50 mm system is a polycarbonate system for the production of translucent vertical curtain walls to use in industrial and civil constructions. The system is made by multiwall extruded polycarbonate panels with 11 walls double-X structure, thickness of 50 mm, module width 500 mm and UV protection obtained by co-extrusion on the external side. The system is made by means of panel coupling, provided by “male / female” joints for a perfect fit; perimeter profiles in aluminium complete the fixing structure. Easy and economical installation, Modulit® 511 LP 50 mm allows excellent light transmission, high load resistance and thermal insulation.

CUSTOMIZATION

PLUS

BICOLOR

XLPLUS

UV PROTECTION

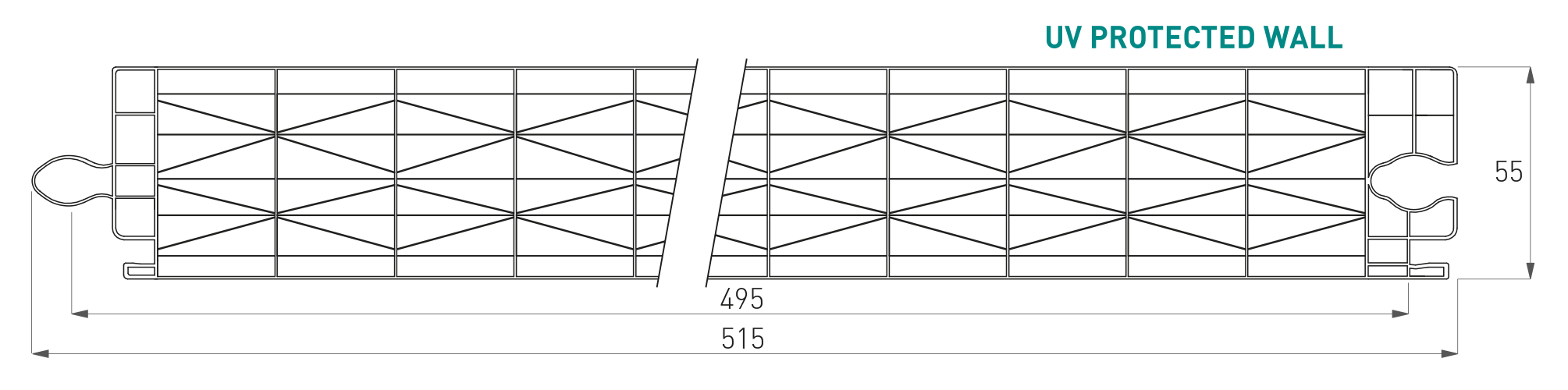

Modulit® 511 LP 55 mm

Modulit® 511 LP 55 mm system is a polycarbonate system for the production of translucent vertical curtain walls to use in industrial and civil constructions. The system is made by multiwall extruded polycarbonate panels with 11 walls double-X structure, thickness of 55 mm, module width 495 mm and UV protection obtained by co-extrusion on the external side. The system is made by means of panel coupling, provided by “male / female” joints for a perfect fit; perimeter profiles in aluminium complete the fixing structure. Easy and economical installation, Modulit® 511 LP 55 mm allows excellent light transmission, high load resistance and thermal insulation.

CUSTOMIZATION

PLUS

BICOLOR

XLPLUS

UV PROTECTION

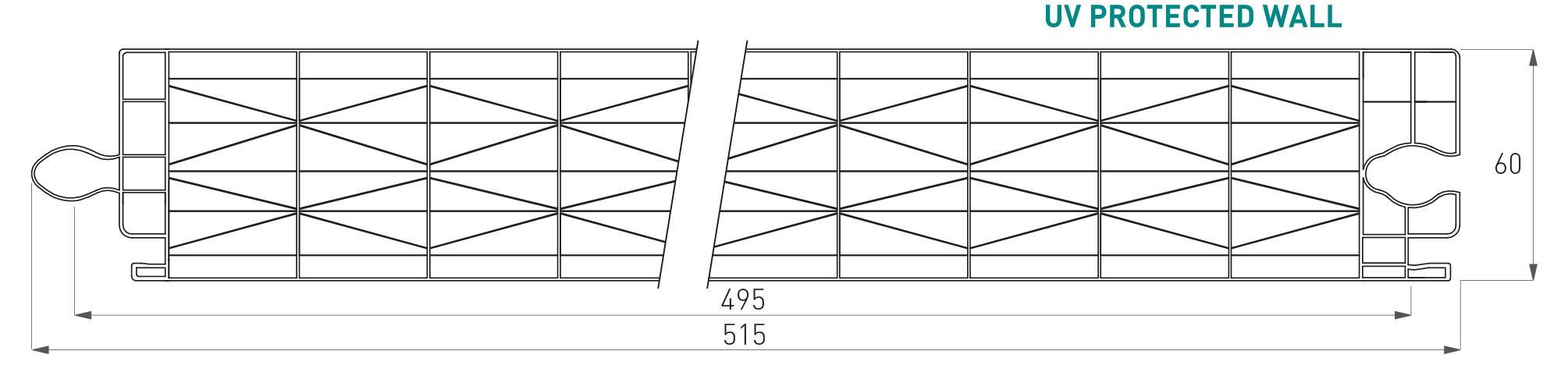

Modulit® 511 LP 60 mm

Modulit® 511 LP 60 mm system is a polycarbonate system for the production of translucent vertical curtain walls to use in industrial and civil constructions. The system is made by multiwall extruded polycarbonate panels with 11 walls double-X structure, thickness of 60 mm, module width 495 mm and UV protection obtained by co-extrusion on the external side. The system is made by means of panel coupling, provided by “male / female” joints for a perfect fit; perimeter profiles aluminium complete the fixing structure. Easy and economical installation, Modulit® 511 LP 60 mm allows excellent light transmission, high load resistance and thermal insulation.

CUSTOMIZATION

PLUS

BICOLOR

XLPLUS

UV PROTECTION

PANEL

Modulit® 520 HC Modulit® 338 LP Modulit® 500 LP Modulit® 511 LP 40 mm Modulit® 511 LP 50 mm Modulit® 511 LP 55 mm Modulit® 511 LP 60 mm

ACCESSORY [SCHEME]	DIM (mm)	TECHNICAL DESIGN

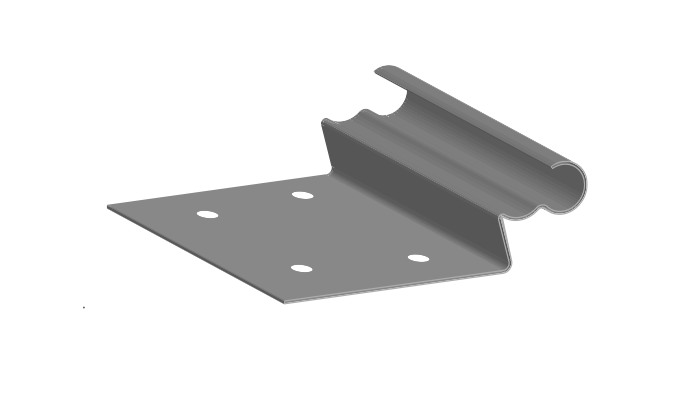

Steel hook (Cod. M9V8)	---

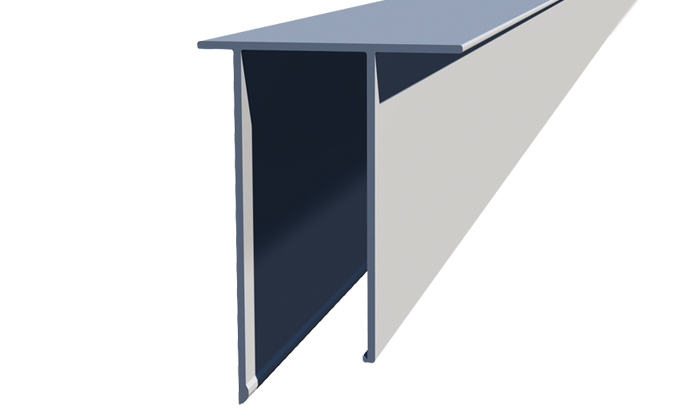

Simple profile upper / side aluminium profile (Cod. M9V1)	6500 mm

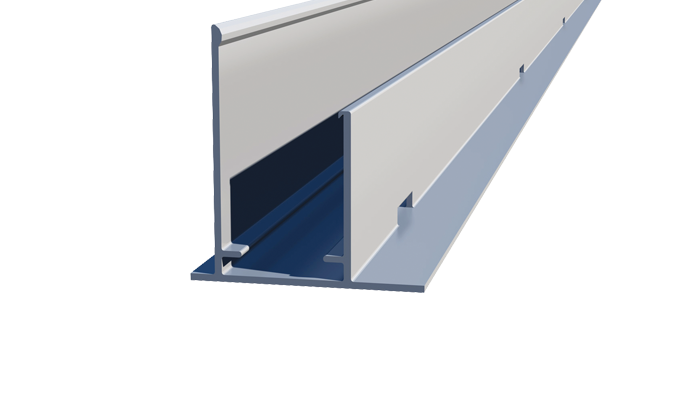

Simple profile lower aluminium profile (Cod. M9V2)	6500 mm

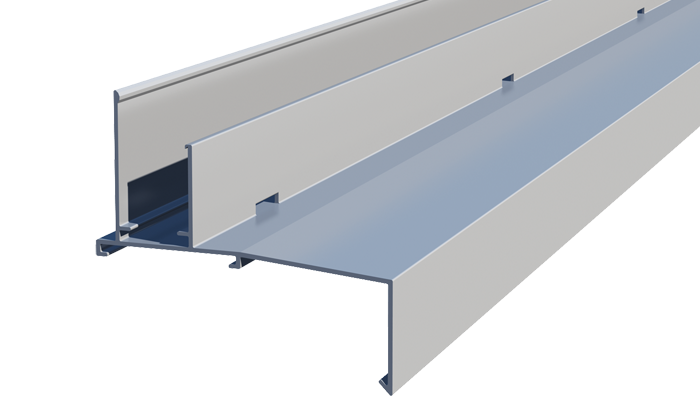

Simple profile Lower aluminium profile with sill (Cod. M9V3)	6500 mm

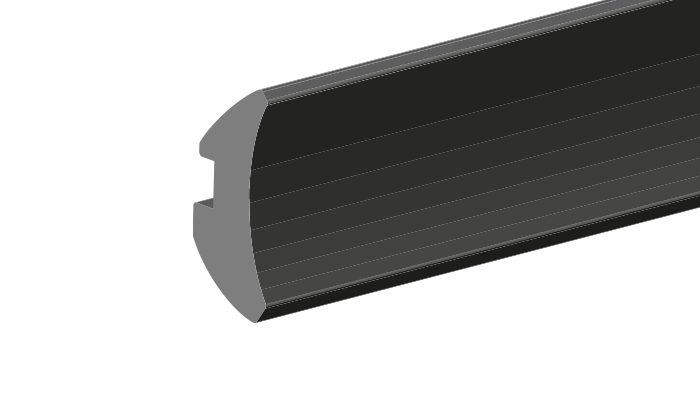

EPDM gasket (Cod. M926)	---
Aluminium adhesive tape (50 m roll) (Cod. M957)	H = 50 mm
Aluminium adhesive tape (50 m roll) (Cod. M965)	H = 38 mm
Aluminium adhesive breather tape (50 m roll) (Cod. M968)	H = 38 mm
Aluminium adhesive breather tape (50 m roll) (Cod. M969)	H = 50 mm

ACCESSORY [SCHEME]	DIM (mm)	TECHNICAL DESIGN

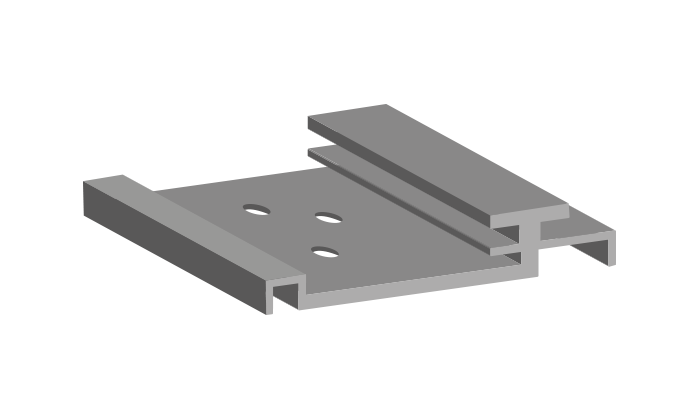

Aluminium hook (Cod. M9V9)	---

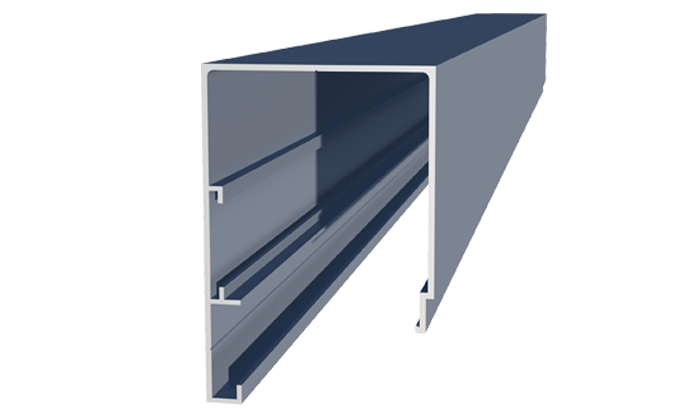

Simple profile upper / side aluminium profile (Cod. M987)	6500 mm

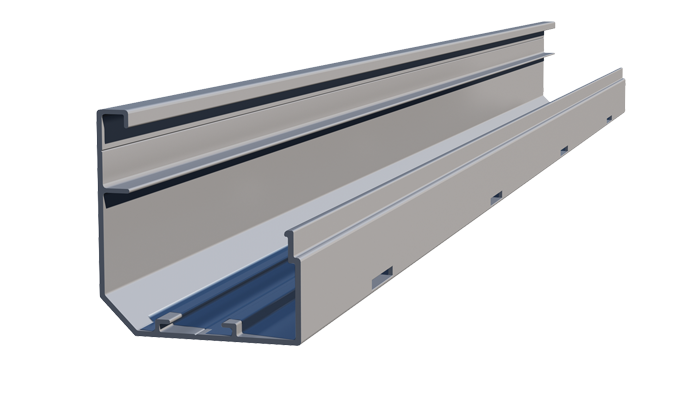

Simple profile upper / side aluminium profile (Cod. M989)	6500 mm

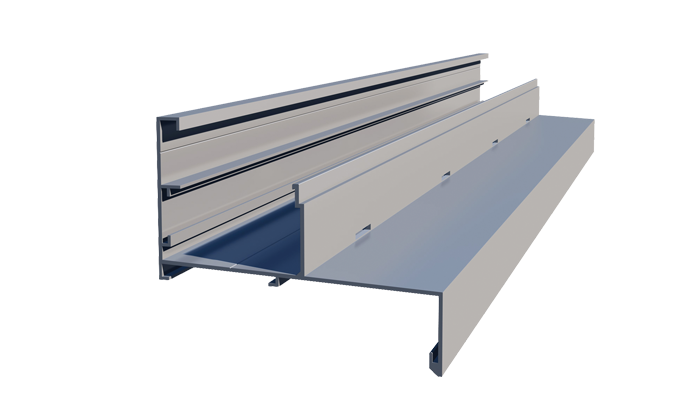

Simple profile upper / side aluminium profile (Cod. M988)	6500 mm

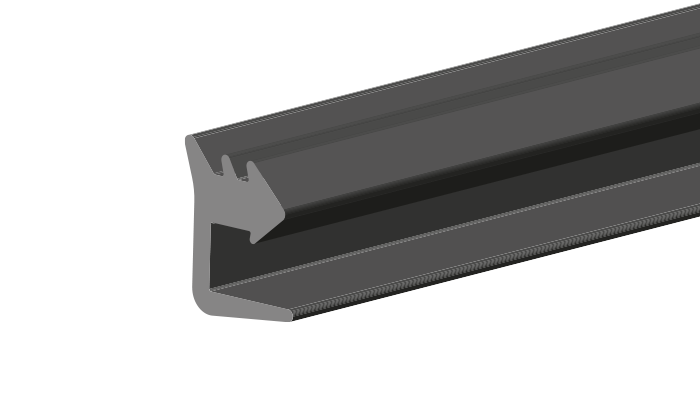

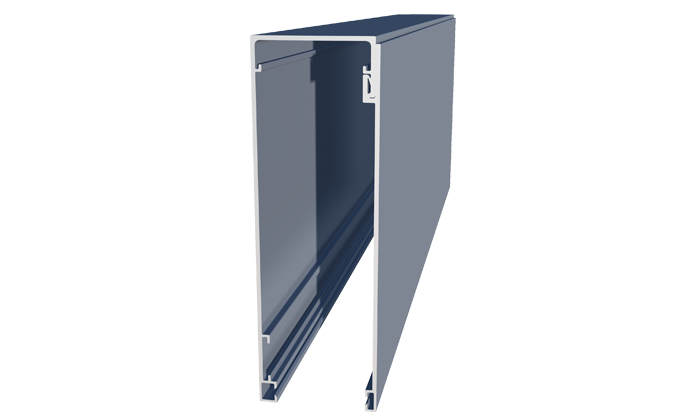

Simple profile “high” upper aluminium profile (Cod. M9S4; M9S6)	6000 mm
EPDM gasket (Cod. M926)	---

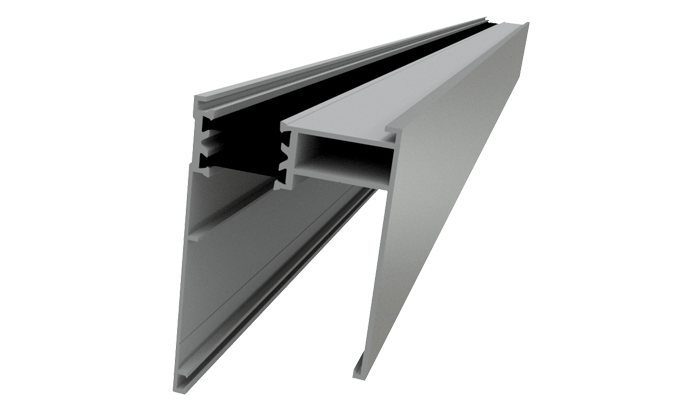

Thermal cut profile lower aluminium profile for 40 mm (Cod. M9B2)	6400 mm
Thermal cut profile lower aluminium profile for 40 mm (Cod. M9B1)	6400 mm
EPDM gasket (Cod. M928)	---

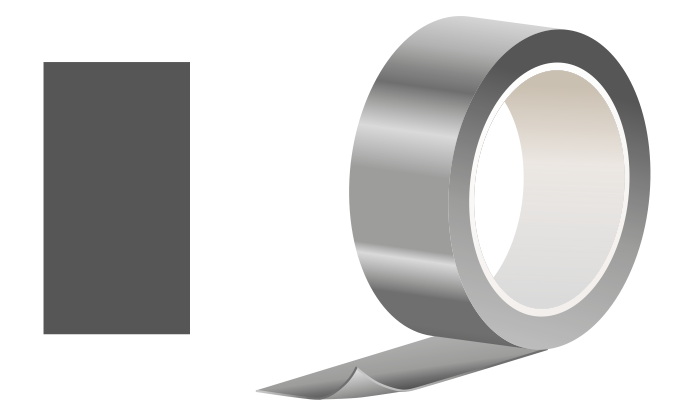

Aluminium adhesive tape (50 m roll) (Cod. M966)	H = 70 mm

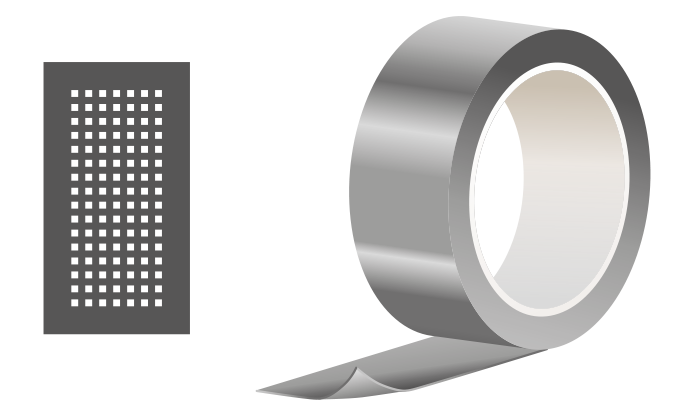

Aluminium adhesive breather tape (50 m roll) (Cod. M970)	H = 70 mm

ACCESSORY [SCHEME]	DIM (mm)	TECHNICAL DESIGN
Aluminium hook (Cod. M9V9)	---
Simple profile upper / side aluminium profile (Cod. M987)	6500 mm
Simple profile upper / side aluminium profile (Cod. M989)	6500 mm
Simple profile upper / side aluminium profile (Cod. M988)	---
Simple profile “high” upper aluminium profile (Cod. M9S4; M9S6)	6000 mm
EPDM gasket (Cod. M926)	---
Thermal cut profile lower aluminium profile for 40 mm (Cod. M9B2)	6400 mm
Thermal cut profile lower aluminium profile for 40 mm (Cod. M9B1)	6400 mm
EPDM gasket (Cod. M928)	---
Aluminium adhesive tape (50 m roll) (Cod. M966)	H = 70 mm
Aluminium adhesive breather tape (50 m roll) (Cod. M970)	H = 70 mm

ACCESSORY [SCHEME]	DIM (mm)	TECHNICAL DESIGN
Aluminium hook (Cod. M9V9)	---
Simple profile upper / side aluminium profile (Cod. M987)	6500 mm
Simple profile upper / side aluminium profile (Cod. M989)	6500 mm
Simple profile upper / side aluminium profile (Cod. M988)	6500 mm
Simple profile “high” upper aluminium profile (Cod. M9S4; M9S6)	6000 mm
EPDM gasket (Cod. M926)	---
Thermal cut profile lower aluminium profile for 40 mm (Cod. M9B2)	6400 mm
Thermal cut profile lower aluminium profile for 40 mm (Cod. M9B1)	6400 mm
EPDM gasket (Cod. M928)	---
Aluminium adhesive tape (50 m roll) (Cod. M966)	H = 70 mm
Aluminium adhesive breather tape (50 m roll) (Cod. M970)	H = 70 mm

ACCESSORY [SCHEME]	DIM (mm)	TECHNICAL DESIGN
Aluminium hook (Cod. M9V9)	---
Thermal cut profile upper / side aluminium profile for 50 mm (Cod. M9B4)	6400 mm
Thermal cut profile lower aluminium profile for 50 mm (Cod. M9B3)	6400 mm
EPDM gasket (Cod. M928)	---
Aluminium adhesive tape (50 m roll) (Cod. M966)	H = 70 mm
Aluminium adhesive breather tape (50 m roll) (Cod. M970)	H = 70 mm

ACCESSORY [SCHEME]	DIM (mm)	TECHNICAL DESIGN
Aluminium hook (Cod. M9V9)	---
Thermal cut profile upper / side aluminium profile for 55 mm (Cod. M9B6)	6400 mm
*Thermal cut profile upper / side aluminium profile for 55 mm** (Cod. M9B5)	6400 mm
EPDM gasket (Cod. M928)	---
Perforated aluminium adhesive tape (50 m roll) (Cod. MXA8)	H = 90 mm

ACCESSORY [SCHEME]	DIM (mm)	TECHNICAL DESIGN
Aluminium hook (Cod. M9V9)	---
Thermal cut profile upper / side aluminium profile for 60 mm (Cod. M9B8)	6400 mm

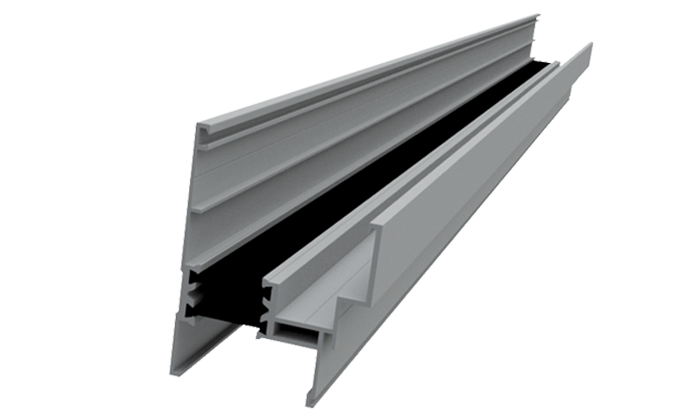

Thermal cut profile lower aluminium profile for 60 mm (Cod. M9B7)	6400 mm
EPDM gasket (Cod. M928)	---
Perforated aluminium adhesive tape (50 m roll) (Cod. MXA8)	H = 90 mm
