Macrolux Multiwall

15 years Limited Warranty

Macrolux Multiwall Polycarbonate is a high performance roofing sheet which has been designed for industrial, commercial , architectural, residential, greenhouse and other applications where insulated glazing is required.

It offers a 15 year limited warranty against loss of light transmission according to ASTM D-1003 and against yellowing according to ASTM D-1925, thanks to the co – extruded UV layer fused to the PC sheet.

Technical Data - Download

Common Applications

  • Heat insulated glazing in factories, supermarkets, warehouses, shopping malls.
  • Glazing in sports halls, stadiums, greenhouses, garden centers, hotels, public constructions.
  • Light roofing in restaurants, bars and residential constructions.
  • Architectural designs.

Features

  • Lightweight
  • Excellent light transmission
  • Long life UV protection
  • Damage and impact resistance
  • Self-extinguishing
  • Thermal insulation
  • Withstands extreme temperatures
  • Excellent appearance

Benefits

  • Energy saving
  • Contributes to obtain LEED Credits for sustainable constructions.
Product Range Special Layers Physical Specification Technical Data Accessories Handling
  Thickness Weight (lb/ft2) Weight (g/m2) Light Transmission Clear Sound Reduction Index Cold Forming Radius Colors

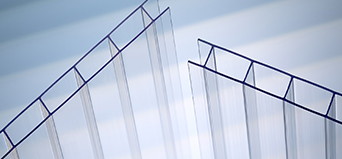

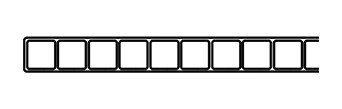

Twin Wall (2W)

Twin Wall (2W)

 4mm 0.16 800 82 N/A 29.5

Clear

White

Bronze

Green

Blue

Smoke Grey

Pearlescent Grey

Opal

Red

Yellow

HD Soft White
6mm 0.26 1300 80 10 39.4
8mm 0.31 1500 80 14 49.2
8mm 0.35 1700 80 14 49.2
10mm 0.35 1700 80 16 59.1
10mm 0.41 2000 80 16 59.1

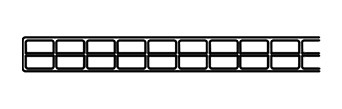

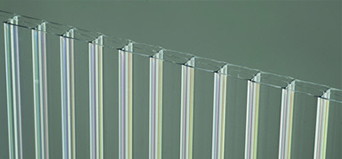

Triple Wall (3W)

Triple Wall (3W)

 8mm 0.31 1500 72 14 51.2
8mm 0.35 1700 72 14 51.2
10mm 0.35 1700 72 N/A N/A
10mm 0.41 2000 72 N/A N/A
16mm 0.55 2700 73 21 113.4

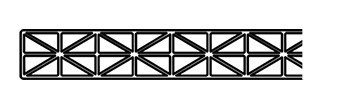

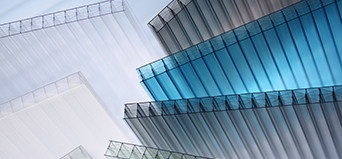

Triple Wall X-Structure (3WX/16)

Triple Wall X-Structure (3WX/16)

 16mm 0.51 2500 59 21 118.1
16mm 0.55 2700 59 21 118.1
IQ-Relax

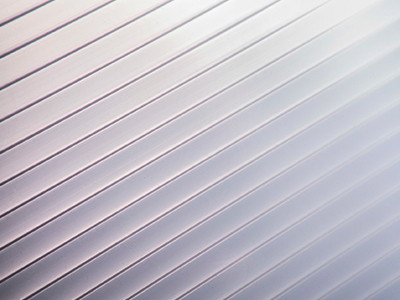

IQ RELAX

Offers high thermal insulation without sacrificing natural light. The Macrolux panels are co extruded with an advanced additive technology that adapts to weather conditions which helps maintain a comfortable temperature inside the structure. During summer months IQ Relax reflects heat and solar energy (55.4 degrees Fahrenheit less inside temperature vs standard multiwall polycarbonate panel) while in winter it keeps the heat inside.

No-Drop

NO DRIP

Anti condensate that inhibits the formation of condensation into droplets by reducing surface tension making the condensation run off the sheets into the gutter or drain.

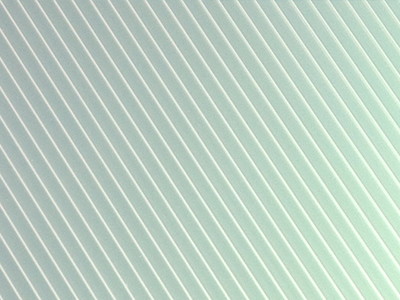

IQ-Selective

IQ SELECTIVE

Designed for retail garden centers offering high light transmission while reflecting the solar energy making the temperature of the shopping environment very comfortable.

Double UV

LIGHT DEPRIVATION PANEL

100% Opaque multiwall polycarbonate sheet with the option of being in different configurations; Black, White/Black or White/Black/White. This sheet is designed for the end and side walls of a greenhouse which require a light deprivation system.

Frostyglass

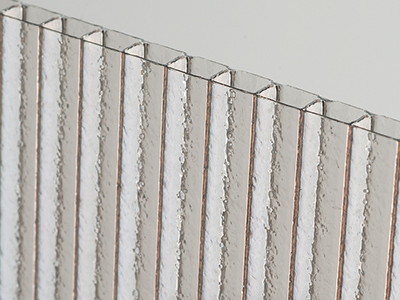

FROSTYGLASS

Features a ground glass appearance, providing greater light diffusion and privacy.

Double UV

2 UV

Two sided UV protection for superior resistance against UV rays which helps maintain long term high light transmission and provides cutting and installation advantages.

Physical specification
Sheet Thickness 4mm 6mm 8mm 10mm 8mm 10mm 16mm 16mm
Structure Twin Wall Triple Wall Triple Wall X-Structure
Weight (lb/ft2) 0.16 0.26 0.31 0.35 0.35 0.41 0.31 0.35 0.35 0.41 0.55 0.51 0.55
Weight (g/m2) 800 1300 1500 1700 1700 2000 1500 1700 1700 2000 2700 2500 2700
Light Transmission (%) Clear 82 80 80 80 72 72 73 59
Light Transmission (%) Opal 61 55 54 54 54 54 N/A 32
Light Transmission (%) White 37 23 19 15 19 15 N/A 4
Light Transmission (%) Bronze 52 50 50 46 50 46 N/A 31
Light Transmission (%) HD Soft White N/A N/A 77 N/A N/A N/A 66 N/A
Light Transmission (%) Smoke Grey 40 37 30 30 30 30 N/A 27
Light Transmission (%) Pearlescent Grey N/A 15 15 15 15 15 N/A 15
Light Transmission (%) Blue 52 50 50 47 50 47 N/A 37
Light Transmission (%) Green 55 55 55 55 55 55 N/A 35
Std. Widths (in) 47.25", 48", 71.25", 72" and 82.67"
Lengths (ft) 4' up to 48'
Thicknesses 4mm (3/16"), 6mm (1/4"), 8mm (5/16"), 10mm (3/8"), 16mm (5/8")
Basic colors

Clear

White

Bronze

Green

Blue

Smoke Grey

Pearlescent Grey

Opal

Red

Yellow

HD Soft White
Technical Data
Thickness Unit 4mm 6mm 8mm 10mm 8mm 10mm 16mm 16mm
Structure   Twin Wall Triple Wall Triple Wall X-Structure
Thermal Insulation BTU/hr - ft2 °F (ASTM C976/90) U-Value R-Value 0.72 / 1.39 0.65 / 1.54 0.58 / 1.73 0.55 / 1.82 0.50 / 2.00 0.44 / 2.27 0.41 / 2.44 0.35 / 2.86
Cold Forming Radius (Minimum permisible) Inch 29.5 39.4 49.2 59.1 51.2 N/A 113.4 118.1
Heat Expansion Coefficient Inch / ft °F 3.6x10-5 3.6x10-5 3.6x10-5 3.6x10-5 3.6x10-5 3.6x10-5 3.6x10-5 3.6x10-5
Max. permanent service temperature w/o load °F 248 248 248 248 248 248 248 248
Possible expansion due to heat and moisture in/ft 0.036 0.036 0.036 0.036 0.036 0.036 0.036 0.036
Weighted sound reduction index dB N/A 10 14 16 14 N/A 21 21

Structural Considerations

Load Deflection

When Macrolux Multiwall twin wall sheet is used as a structural element in roofs and walls, the forces applied by wind and snow loads must be absorbed by a suitable structure. Also, adequate locking devices must be used to protect the whole structure (PC sheet and metal or wood structure) against wind suction.

The anticipated structural load values are specified in local building regulations. The total applicable load deflects the sheet. For safety and aesthetic reasons, the maximum bend should be limited to 5% of the dimensions of the shorter side of the sheet.

For a 4' wide sheet:

Maximum Purlin Spacing (inches) sheet deflection -1"
Load (lbs/ft2) 15 30 45 60
6mm 31" 24" 12" -
8mm 38" 28" 18" 10"
10mm 45" 34" 28" 24"
16mm 75" 43" 36" 30"

For a 6' wide sheet:

Maximum Purlin Spacing (inches) Sheet Deflection -1"
Load (lbs/ft2) 15 30 45 60
6mm 25" 9" - -
8mm 36" 26" 12" -
10mm 44" 33" 27" 20"
16mm 60" 40" 36" 30"

Heat Expansion

Macrolux Multiwall PC sheet has a higher heat expansion coefficient than standard construction materials such as glass, steel and aluminum. Specific clearance between the sheet and the structural frame has to be calculated in order to ensure proper installation.

MaterialHeat Expansion Coefficient (inch/ftºF)
Macrolux Multiwall 3.6x10-5
Glass 5x10-5
Steel 8x10-5
Aluminum 1.6x10-5

Fire Behavior

Macrolux Multiwall PC sheet is produced using world class high-quality polycarbonate resin. It does not burn easily and has been defined as a self-extinguishable material by international standards in different countries.

ASTMCLASSIFICATK
ASTM E84-01 ClassA (NFPA); Class (UBC)
ASTM D635-74 Class CC1
ASTM D2843-93 Low Smoke Density (UBC standard No. 26-5)
ASTM D1929-68 Self Ignition Temperature greater than 650ºF

Light transmission

Change in the light transmission of PC sheet in time

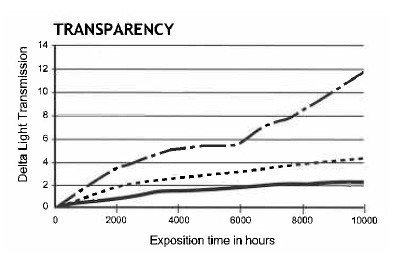

Transparency

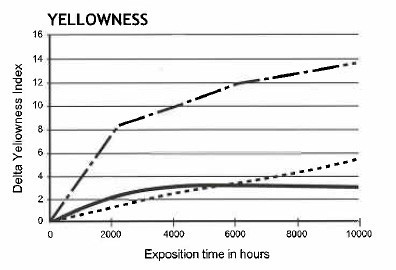

Change in the yellowness index of PC sheet in time

Yellowness
TypeSettingPresentationColorApplicationStd Length / Qty of pcs per pack
Standard U-Profile Standard U-Profile For 4 & 6 mm, For 8 & 10 mm

Clear

White

Bronze

 To cover the cells and prevent leaks 12’ (3.66mts) pack of 20 pieces
Standard H-Profile Standard H-Profile For 4 & 6 mm, For 8 & 10 mm

Clear

White

Bronze

 To join multiwall panels 24” (7.32mts) pack of 10 pieces
Snap Cap Profile Snap Cap Profile 4mm to 10mm

Clear

 To join multiwall panels 24” (7.32mts) pack of 10 pieces
Vented Tape Vented Tape 16´, 147 ´(5 ml, 45 ml)

Aluminum

 To seal allowing breathing the material min. 10 pieces
Aluminum Tape Aluminium Tape 16´, 147 ´(5 ml, 45 ml)

Aluminum

 To seal min. 10 pieces
Buttons Buttons For 4 & 6 mm, For 8 & 10 mm

White

 When perforation is absolutely necessary min. 100 pieces

  • In order to avoid condensation in the sheet cells and sheet deterioration, always place the sheet with the cells in the vertical direction.
  • Always store the sheets in horizontal position, never against the floor. Apply aluminum tape to seal the cells after cutting the sheet. Do not walk over the sheets.
  • Do not apply direct load on the sheet with foot or knee. Use wood platforms or supports to spread out the pressure during installation.
  • Remove IIV protecting masking only and right after installation; never before and never after hours of being installed.
  • Macrolux® PC sheet can be cut to size using tools for standard materials such as cutters and saws. However, it is recommended the use of a table with fixed
  • knives for a cleaner cut.
  • It is not recommended to drill holes in the sheet. Rather than this, the recommendation is the use of aluminum or polycarbonate profiles to fix the sheets to the structure.
  • Never use PVC profiles when installing Macrolux®PC sheets.

Cleaning and Maintenance

  • For general cleaning it is recommended to use a non-abrasive, solvent free neutral soap with water.
  • Rinse with high-pressure washer-Use a soft cloth or sponge to loosen any remaining of dirt and grime. Never use abrasive cleaners or brushes. Do not scrub the sheet surface.
  • Never clean with gasoline, benzene or acetone.

Bonding Adhesives

It is recommended to use silicone based sealant such as Dow Corning- 791 or equivalent.
